How Does Gear Ratio Affect a DC Gearbox’s Performance?
When selecting a dc gearbox or a mini gearbox for your project, understanding how gear ratio impacts performance is crucial. But how exactly does gear ratio influence the behavior of a gearbox? Why does it matter so much for efficiency, torque, and speed? This article dives deep into these questions and explains everything you need to know about gear ratios and their effect on DC gearbox performance.

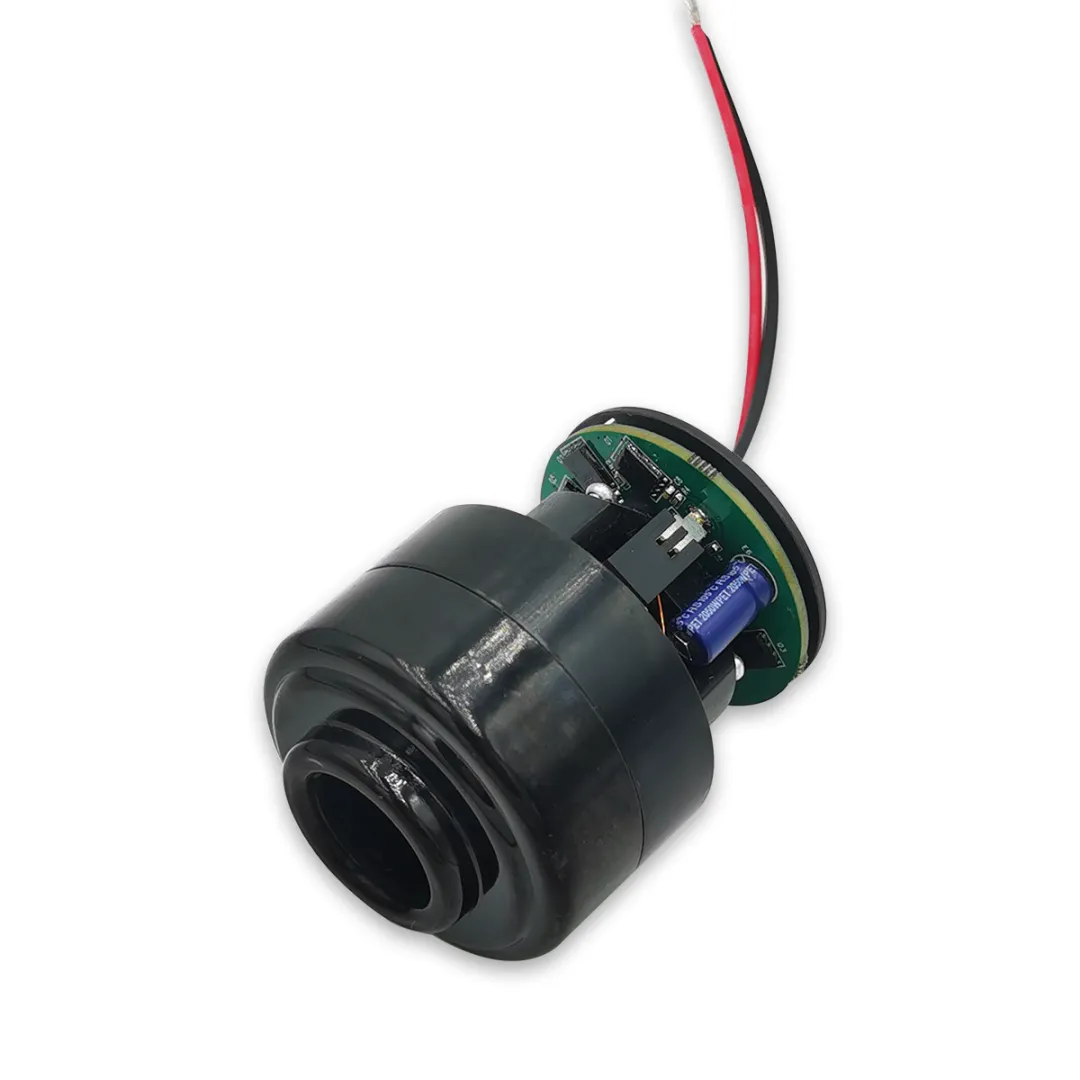

What Is Gear Ratio in a DC Gearbox?
Before exploring how gear ratio affects performance, it’s important to define what gear ratio means in the context of a dc gearbox. Gear ratio is the ratio of the number of teeth on the output gear to the number of teeth on the input gear. Essentially, it tells you how many rotations the input gear must make for the output gear to complete one rotation.
For example, a gear ratio of 10:1 means the input shaft turns 10 times for every single turn of the output shaft. This ratio directly influences the speed and torque that the gearbox delivers.
Do you want to visit Char Dham? Char Dham Travel Agent is the best place to plan your Char Dham tour. You can book the tour from here.
How Does Gear Ratio Influence Torque in a DC Gearbox?
One of the primary impacts of gear ratio on a dc gearbox is torque multiplication. Torque is the rotational force that the motor outputs, and gearboxes modify this force to suit specific needs.
A higher gear ratio increases the torque at the output shaft. This means if you have a 20:1 gear ratio, the output torque will be roughly 20 times the input torque, minus some efficiency losses due to friction. This multiplication allows small motors to drive heavier loads effectively.
For example, the Kinmore Motor DC gearboxes utilize carefully calculated gear ratios to boost torque without sacrificing reliability. By choosing the right gear ratio, users can optimize their mini gearbox for applications that demand high torque, such as robotics or conveyor systems.
Would you like to visit Indiar? A tour operator in India is the best place to plan your tour. You can book a tour from here.
Does Gear Ratio Affect Speed in a DC Gearbox?
Yes, gear ratio and speed share an inverse relationship. When a gearbox increases torque by using a higher gear ratio, it reduces the output speed proportionally. Using the previous example of a 10:1 gear ratio, the output shaft spins at one-tenth the speed of the input shaft.
This trade-off between speed and torque is critical in many applications. A mini gearbox with a lower gear ratio delivers higher speeds but lower torque, ideal for light-duty tasks requiring rapid motion. On the other hand, a higher gear ratio slows down the output but provides the necessary power to move heavier loads.
Why Is Choosing the Right Gear Ratio Important for DC Gearbox Performance?
Selecting the correct gear ratio ensures the dc gearbox performs efficiently for its intended application. Using an incorrect gear ratio can lead to motor strain, overheating, or inadequate torque to handle the load.
Would you like to visit Haridwar? Travel agents in Haridwar are the best place to plan your trip. You can book your tour right here.
For instance, if the gear ratio is too low for a heavy load, the motor must work harder, risking damage and reduced lifespan. Conversely, an excessively high gear ratio can slow down the system unnecessarily, decreasing productivity.
Kinmore Motor designs its gearboxes with a range of gear ratios to suit various performance needs, ensuring users can find the perfect balance between torque and speed for their project.
How Does Gear Ratio Affect Energy Efficiency in a DC Gearbox?
Gear ratio also plays a vital role in energy consumption. When a gearbox amplifies torque, the motor can run at lower current levels, reducing overall energy use. However, if the gear ratio is poorly matched, the motor may draw excessive current, causing inefficiency.
A properly selected gear ratio allows the mini gearbox to operate within the motor’s optimal efficiency range. This results in less heat generation, longer motor life, and lower power costs.
Can Gear Ratio Impact Noise and Vibration in a DC Gearbox?
Absolutely. Gear ratio influences the rotational speed of gears, which affects noise and vibration levels. Higher gear ratios mean slower output speeds, which can reduce noise from high-speed rotations. Conversely, low gear ratios with fast output speeds may generate more noise and vibrations.
Additionally, the quality of gears and lubrication also plays a role. Premium manufacturers like Kinmore Motor ensure their dc gearbox products use precision engineering to minimize unwanted noise and vibrations, regardless of the gear ratio.
How Does Gear Ratio Affect Load Capacity in a DC Gearbox?
The gear ratio impacts how much load the gearbox can handle. By increasing torque through a higher gear ratio, the gearbox can support heavier loads without overloading the motor.
In applications where the mini gearbox must drive significant mechanical resistance, a higher gear ratio protects the motor and gearbox from premature failure by distributing the load more effectively.
What Are Common Gear Ratios Used in DC Gearboxes and Mini Gearboxes?
Typical gear ratios in dc gearboxes range from as low as 3:1 up to 100:1 or higher. Lower ratios like 3:1 or 5:1 suit applications requiring fast output speeds but less torque. Ratios around 20:1 to 50:1 are common for balanced torque and speed. Ratios above 50:1 deliver maximum torque but slower speeds.
Mini gearboxes often use higher gear ratios due to their size constraints, optimizing torque output for compact designs.
How to Choose the Right Gear Ratio for Your DC Gearbox?
To select the ideal gear ratio, consider the following:
- Required Torque: Calculate the torque needed to drive your load. Choose a gear ratio that multiplies the motor’s torque to meet or exceed this requirement.
- Desired Speed: Determine the necessary output speed for your application. Remember that increasing torque decreases speed.
- Motor Specifications: Match the gear ratio to your motor’s torque and speed curves for optimal performance.
- Efficiency: Select a gear ratio that keeps the motor within its efficient operating range to avoid excess energy consumption.
- Space Constraints: For tight spaces, opt for a mini gearbox with a compact design and appropriate gear ratio.
How Does the Gear Ratio Influence the Longevity of a DC Gearbox?
Using the right gear ratio helps prevent motor overload, excessive heat, and mechanical stress. This leads to longer gearbox and motor lifespan. Overworking the motor by using a low gear ratio for heavy loads causes wear and potential failure.
Quality brands like Kinmore Motor engineer their dc gearboxes to optimize gear ratios for durability, ensuring smooth, long-term operation even in demanding environments.
What Role Does Gear Ratio Play in Customizing DC Gearbox Applications?
Gear ratio customization allows the gearbox to be tailored for unique tasks. Whether you need more speed for a conveyor belt or more torque for a robotic arm, adjusting the gear ratio lets you adapt the mini gearbox perfectly.
Manufacturers often offer modular options where customers can specify gear ratios to best fit their project requirements.
Summary: How Does Gear Ratio Affect a DC Gearbox’s Performance?
In summary, gear ratio fundamentally determines the trade-off between torque and speed in a dc gearbox. It affects torque multiplication, output speed, energy efficiency, noise, load capacity, and the overall lifespan of the gearbox and motor. Selecting the right gear ratio for your application ensures optimal performance, energy savings, and durability.
For those seeking reliable, high-quality mini gearboxes, brands like Kinmore Motor provide expertly engineered options with a wide range of gear ratios tailored to various needs.
